Tradeoffs of parallel processing in C++ -- std::thread vs NVIDIA CUDA

Code for this tutorial is on GitHub at: Intermediate/Threading/serialVsParallel

Email mailto:mday299@pm.me

Photo by Deepak Rautela on Unsplash
Photo by Deepak Rautela on Unsplash

Overview

Introduction, Setup, Code Samples, Credits, Tradeoffs

Introduction

Parallel processing in C++ can be approached in multiple ways. Among the more common are:

  • CPU parallelism using std::thread
  • GPU parallelism using NVIDIA CUDA

Both dramatically outperform serial execution, but each has different strengths, limitations, and hardware requirements. This article explores some of those tradeoffs using three parallel workloads. Code was tested on Ubuntu 24.04 with CUDA 11.8.

Setup

My video card is a bit dated so I’m limited to CUDA 11.8 and gcc-10. You may be able to install a later version of CUDA and gcc if your NVIDIA driver supports it.

Step 1: Install libpng and gcc-10.

Ubuntu:

sudo apt-get install libpng-dev
sudo apt-get install gcc-10 g++-10

Windows

One way to install libpng is to open up a cmd prompt and type:

vcpkg install libpng:x64-windows

Mac

One way to install libpng on Mac is with Homebrew:

brew install libpng

Code Samples

Again, the code for this tutorial is on GitHub at: Intermediate/Threading/serialVsParallel

Refer to g++ docs for how to build and run g++: (latest as of this writing: gcc-16.2.0/gcc/).

Refer to NVIDIA docs for how to build and run nvcc (docs.nvidia.com/cuda/).

All code samples below have a serial, a std::thread parallelized and a CUDA parallelized version. The expected performance order is Serial > std::thread > CUDA.

Feel free to play around with these examples! Try modifying vectors, matrices, threads, grids, blocks, etc. Note that you may have to reboot your machine if you get too ambitious with the memory allocation.

Code Sample 1: Vector Addition

Serial:

g++ serialVecAddHugeCircular.cpp -lpng -o serialVecAddHugeCircular
./serialVecAddHugeCircular

Parallel std::thread

g++ parallelVecAddHugeCircular.cpp -lpng -o parallelVecAddHugeCircular
./parallelVecAddHugeCircular

Parallel CUDA

nvcc -ccbin=/usr/bin/g++-10 cudaParallelGPU.cu -lpng -o cudaParallelGPU
./cudaParallelGPU

(g++-10, because I can’t do modern CUDA on my current machine)

Serial:

Code Sample 2: Matrix Multiplication

g++ serialMatrixMult.cpp -o serialMatrixMult
./serialMatrixMult

Parallel std::thread

g++ parallelMatrixMult.cpp -o parallelMatrixMult
./parallelMatrixMult

Parallel CUDA

nvcc -ccbin=/usr/bin/g++-10 cudaMatrixMult.cu -o cudaMatrixMult
./cudaMatrixMult

Code Sample 3: Monte Carlo Pi Estimate

See estimating-value-pi-using-monte-carlo/ for an explanation of Monte Carlo Pi estimation.

Serial:

g++ serialMontePiEst.cpp -o serialMontePiEst
./serialMontePiEst

Note: this one can take a while on a slow machine! You may end up having to decrease the sample size.

Parallel std::thread

g++ parallelMontePiEst.cpp -o parallelMontePiEst
./parallelMontePiEst

Parallel CUDA

nvcc -ccbin=/usr/bin/g++-10 cudaMonteCarloPiEst.cu -o cudaMonteCarloPiEst
./cudaMonteCarloPiEst

Credits

Stanford Parallel Computing Course https://github.com/stanford-cs149/

Microsoft Copilot

Tradeoffs: Serialized vs std::thread vs NVIDIA CUDA.

Serial execution. Predictable and simple.

  • One thread, one instruction stream.
    • Easiest, most predictable, and great on small datasets.
    • Perfect for correctness, debugging, and baseline performance.
    • Performance grows linearly with dataset size.
  • No synchronization, no race conditions, no memory‑transfer overhead.
  • Does NOT scale to large datasets.

std::thread parallelism, moderate speedup, moderate complexity

Performance characteristics:

Use std::thread when:

  • You want parallelism without GPU complexity
  • CPU has many cores
  • Dataset fits comfortably inside the CPU cache

CUDA: GPU parallelism, massive speedup, highest complexity

Launches tens of thousands of threads.

Ideal for:

Performance characteristics:

  • GPUs have orders of magnitude more parallel units.
  • Memory bandwidth is extremely high.

Use CUDA when:

  • Dataset is huge.
  • Workload is parallel
  • You need real‑time or near‑real‑time performance

The CUDA Hierarchy

  • Thread The smallest unit of execution. Each thread runs the kernel code on one piece of data (for example, one pixel or one matrix element).
  • Block A group of threads. Threads inside a block can cooperate by sharing data in shared memory and synchronizing with each other.
    • Blocks are usually 1D, 2D, or 3D arrays of threads.
    • Example: dim3 threadsPerBlock(16, 16) → a block with 256 threads arranged in a 16×16 grid.
  • Grid A collection of blocks. The grid defines the overall shape of the computation.
    • Grids can also be 1D, 2D, or 3D arrays of blocks.
    • Example: dim3 numBlocks(64, 64) → a grid with 4096 blocks.

How threads are identified

Each thread has a unique global ID computed from its block and thread indices:

int globalX = blockIdx.x * blockDim.x + threadIdx.x;
  • threadIdx: thread’s index inside its block
  • blockIdx: block’s index inside the grid
  • blockDim: number of threads per block
  • gridDim: number of blocks per grid

This mapping lets you assign each thread to a specific element in your data structure (like a pixel in an image or an entry in a matrix). The following image may be helpful:

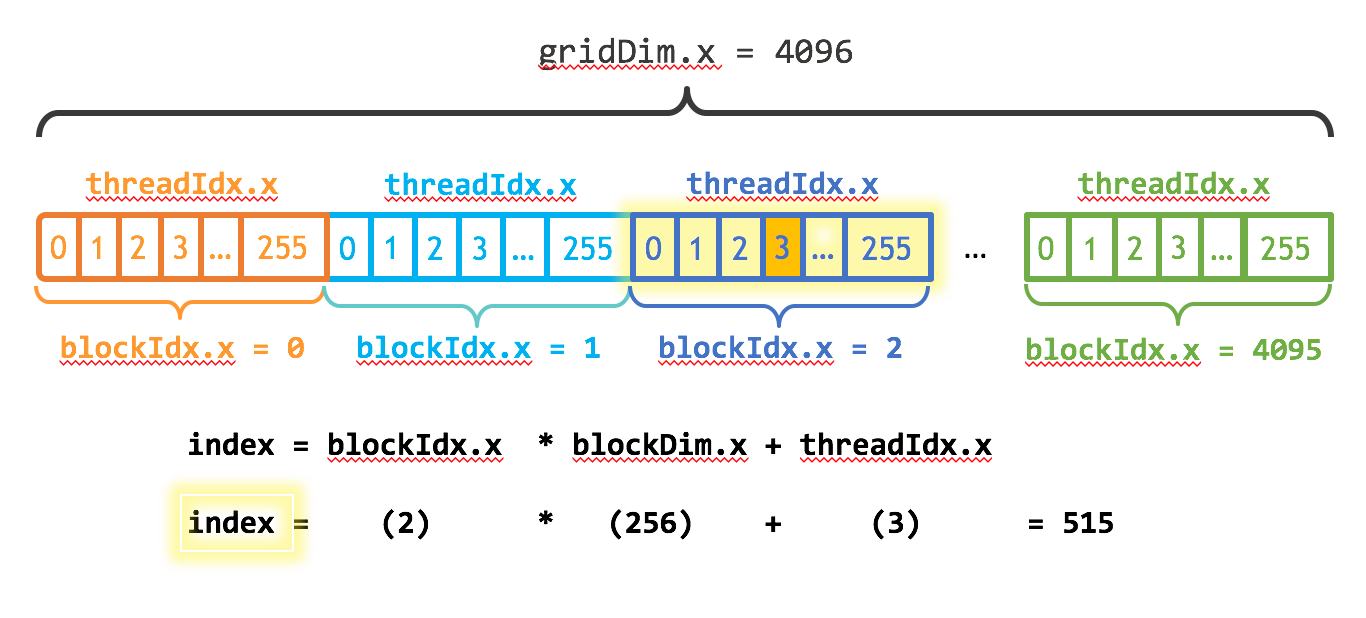

CUDA Indexing Schema
CUDA Indexing Schema. Image credit developer.nvidia.com

Example: 1000×1000 matrix multiplication

  • Threads per block: (16, 16) = 256 threads per block
  • Blocks per grid: (63, 63) = enough blocks to cover 1000×1000 elements
  • Total threads launched: 63*16 × 63*16 ≈ 1,016,064 threads

Each thread computes one element of the result matrix.

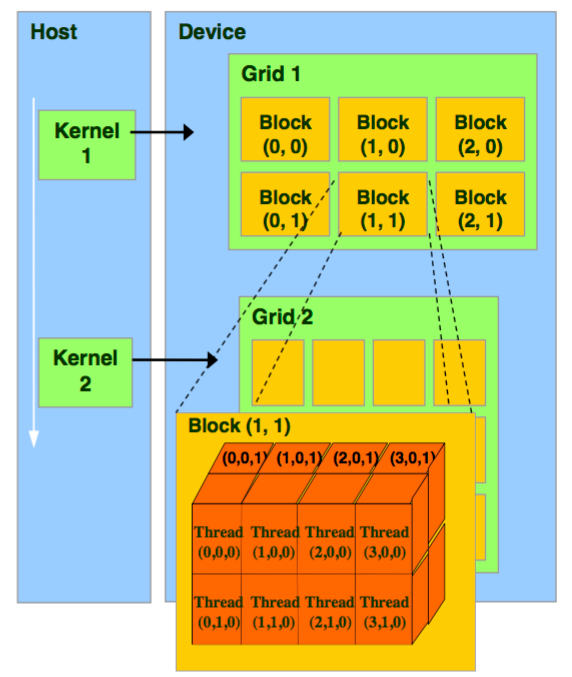

This image may also help:

Image credit nyu-cs.github.io
